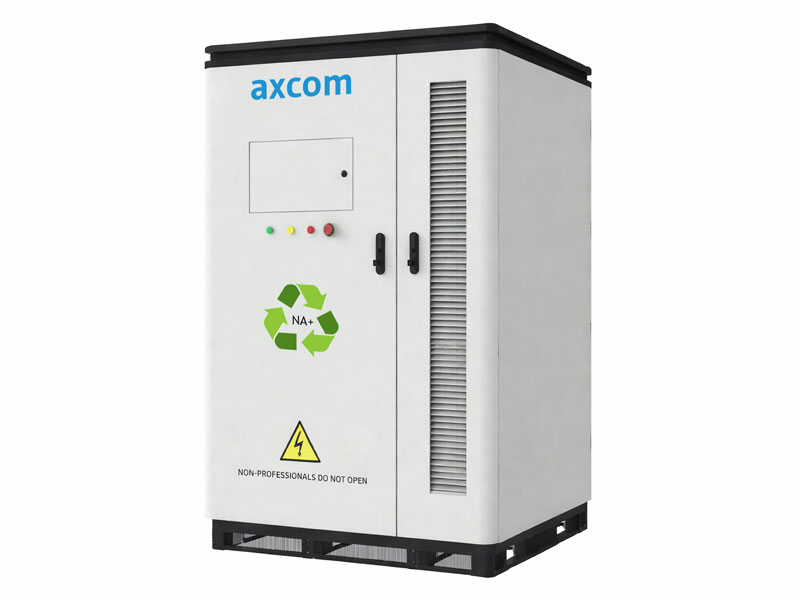

Axcom Sodium-Ion Large-Scale Energy Storage Cabinet IP54 720V 116kWh

Sodium-ion large-scale energy storage cabinet with 720V 116kWh

Sodium-ion large-scale energy storage system with built-in cooling, a fire suppression system and a management display.

Monitoring can be accessed via Bluetooth or Wi-Fi.

Multiple storage units can be interconnected and monitored simultaneously. The inverters required for installation are not included in the scope of delivery.

Technical specifications:

Battery type: Sodium-ion (NA+)

Cell model: 2.85V / 170Ah

Module type: 48V / 7.75kWh (1P16S)

Battery cabinet: 720V / 116kWh (26S)

Operating voltage: 450–840V

Rated power: 100kW

Storage temperature: -40°C to +60°C

Display: Yes

Protection class IP54

Dimensions: 1800x1500x2300mm

Advantages of sodium-ion batteries

Long service life: Sodium-ion batteries offer a significantly longer service life of over ten years compared to lead-acid batteries. They achieve a much higher number of charge and discharge cycles without showing any significant loss of capacity. They charge quickly, deliver high discharge currents and remain reliable even under intensive use.

Compatible with existing systems: Sodium batteries can be used in the same applications as lead-acid batteries. Thanks to identical contacts, they can be easily integrated into existing systems and are compatible with standard charging technology for lead-acid batteries.

Low weight: Weighing only about one-third as much as lead-acid batteries, sodium-ion batteries are ideal for mobile or weight-sensitive applications such as caravans, boats, commercial vehicles or portable devices.

High temperature resistance: Sodium batteries operate reliably from –40 °C to +60 °C. The stable electrolytes reduce the risk of fire, and the low reactivity of sodium ensures safe operation in hot and cold conditions.

Deep discharge capability: Sodium-ion batteries can withstand long deep discharges without permanent cell damage or safety risks. This makes storage and transport much easier.

Sustainable and safe: Sodium is abundantly available and reduces dependence on critical raw materials. The batteries do not contain heavy metals, are recyclable, non-flammable and subject to less stringent transport regulations. A clear advantage for the environment and safety!

Innovation in the battery industry: sodium batteries

Sodium-ion batteries (SIB) are modern battery solutions that surpass existing technologies such as lead in many respects. They use sodium, an element that is abundantly available worldwide, and thus offer advantages not only in terms of cost and sustainability, but also in terms of performance, safety and reliability. Sodium-ion batteries are a forward-looking alternative to conventional battery types, especially in applications where robust, low-maintenance and temperature-resistant energy storage is required.

Areas of application for sodium ion batteries

Thanks to their low weight, high temperature resistance and robust performance, sodium-ion batteries can be used in a wide range of applications. In mobile applications in particular, from electric mobility and recreational vehicles to drones, users benefit from a lightweight, durable and powerful energy source that provides high discharge currents, thereby increasing both range and efficiency. Sodium-ion batteries are also impressive in the field of sustainable energy systems such as photovoltaic or wind power: their high cycle stability and environmental friendliness make them ideal storage solutions for frequently changing charge states. Whether on the water, in medical devices or in smart technical applications, the battery chemistry remains stable even at extreme temperatures and offers a high level of safety. This combination of reliability, sustainability and flexibility makes sodium-ion batteries a sustainable alternative for a wide range of technical and mobile applications.
