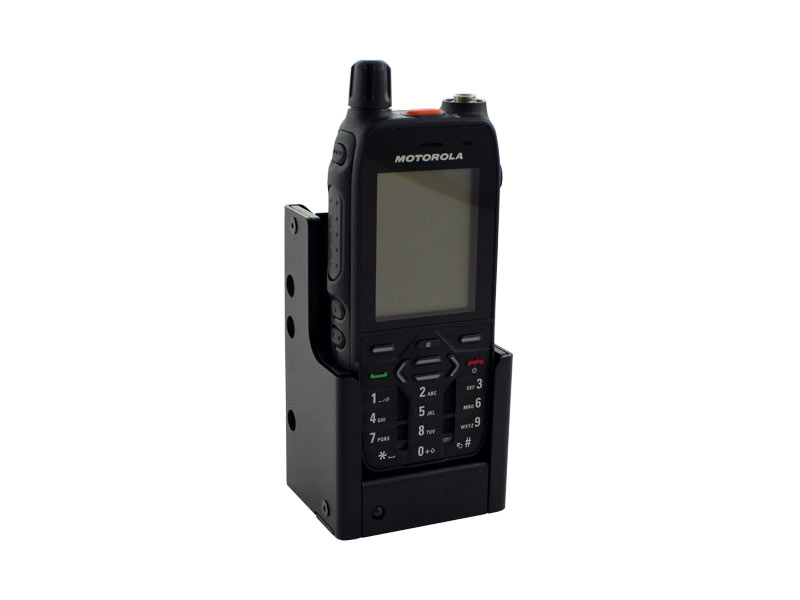

Car charging cradle for Motorola MXP600

High-quality radio charger for mobile use

This car charger has been developed for holding and mounting Motorola MXP6000 handheld radios and controls the charging of Li-Ion batteries using a microcontroller. It determines and controls the optimum charging characteristics for all battery types (CC / CV controlling). The battery charge status is checked at dynamically adjusted intervals. This enables energy-saving continuous use with extended battery life. The system switches off after a full charge! Charging is only maintained as required in order to keep the charge level at a minimum of 80%. The operation of all switching elements and buttons remains freely accessibleduring the use! Easy handling and precise device guidance ensure a secure hold and contact in the charging cradle. Gold-plated spring bronze contacts ensure long-lasting function thanks to low contact resistance and are easy to clean. A 5-fold display for operational readiness, charging with constant current (CC) or constant voltage (CV), as well as battery / temperature error message provides information on the status of the battery in the charging cradle.

Technical data:

Operating voltage 12V to 35V DC reverse polarity protected
Charging current ~ 650mA

LED display orange / green / red
HRT is firmly locked in place with belt clip
Robust metal housing polyamide plastic-coated
Dimensions: 67x105x54mm (W/H/D)
Compatible with: Motorola MXP6000
CE, RoHS, lead-free

5 year K-tronic warranty

Scope of delivery:

Charging cradle
Mounting instructions
Mounting U-bracket
Thumbwheel screws
Connection cable with fuse
Cable clamp and M3 countersunk screw

Your advantages at a glance:

• Microcontroller determines and controls the optimum charging characteristics for all battery types (CC / CV controlling)
• Energy-saving continuous use and longer battery life by checking the charge status
• Switches off after full charge
• Charge retention as required maintains charge level of at least 80%
• Robust metal housing polyamide plastic-coated
