Handheld control unit for Motorola R7, MXP600 with Bluetooth function

New, innovative speaker microphone for Sepura radios!

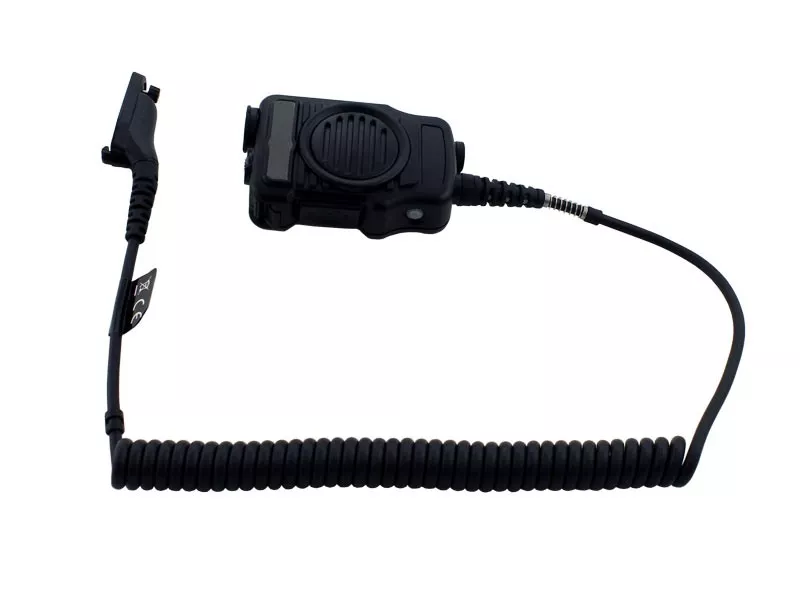

The XSMP6000-MR7 speaker microphone from Axcom is compatible with Motorola R7 and MXP600 radios. Thanks to their simple operation and improved sound quality, speaker microphones offer optimum conditions for radio communication. In addition to the Bluetooth function, you benefit from many other advantages with the new XSMP6000 series from Axcom. We are pleased to present the product features to you in detail:

The microphone: The built-in condenser microphone impresses with its particularly high sound quality. The handset also has a noise reduction function, which can be activated and deactivated using a button with LED display.

The transmit buttons: For easy operation, the microphone can be activated via 2 PTT buttons, which can be easily operated even when wearing gloves. The loudspeaker cover also serves as a PTT button.

The speaker: For clear communication, the volume of the handset can be increased, decreased or muted using a separate button.

Bluetooth function: In addition to the connection to a radio, the handset can also be connected to a cell phone via a Bluetooth function. In addition to radio signals, it is also possible to accept/hang up calls from the cell phone or play/pause an audio source via the hand control.

LED display: A practical LED display supports the functions of the handset with different light colors. This includes Bluetooth pairing, the noise suppression function, the low battery indicator or the activation of the PTT button.

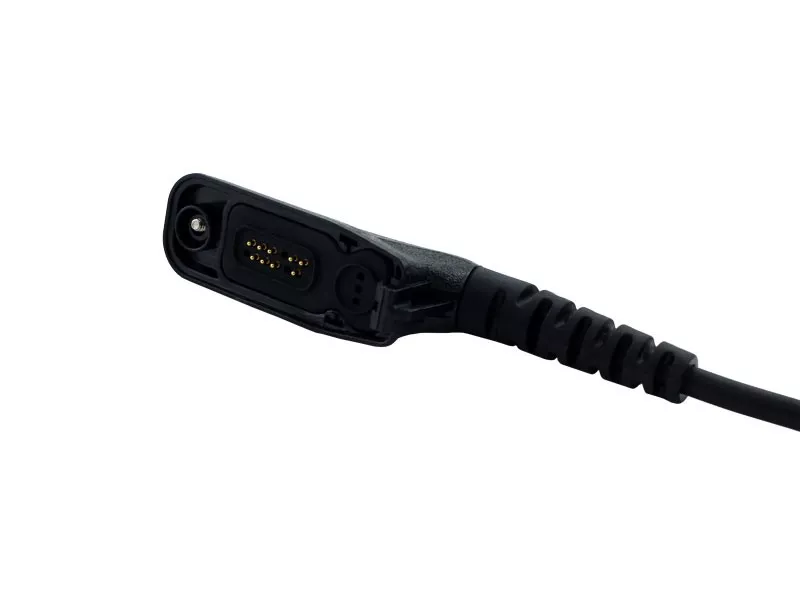

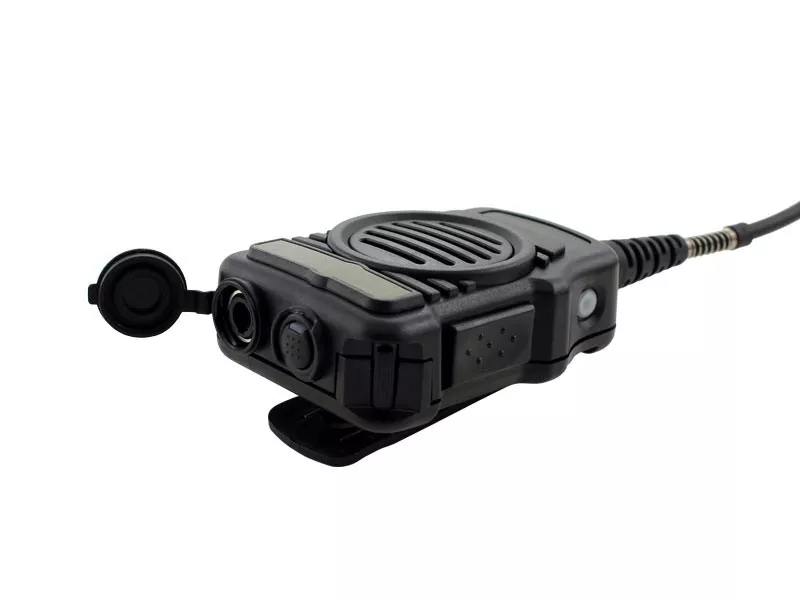

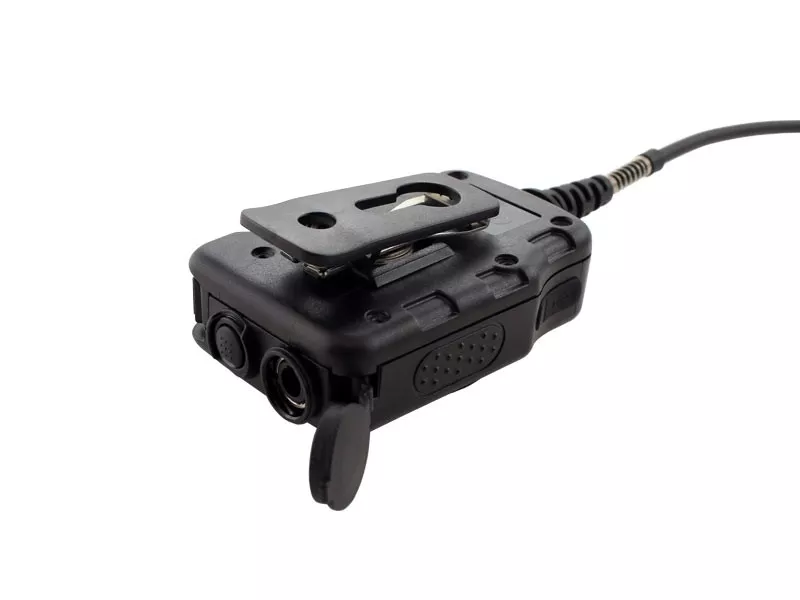

Connections: Accessories such as mono headphones can be connected via a 3.5 mm jack socket. In addition, the speaker microphone has a Nexus socket to which all Nexus-compatible headsets can be connected (automatic assignment adjustment for typical headset assignments such as Savox / Peltor). The battery is charged via a USB-C port.

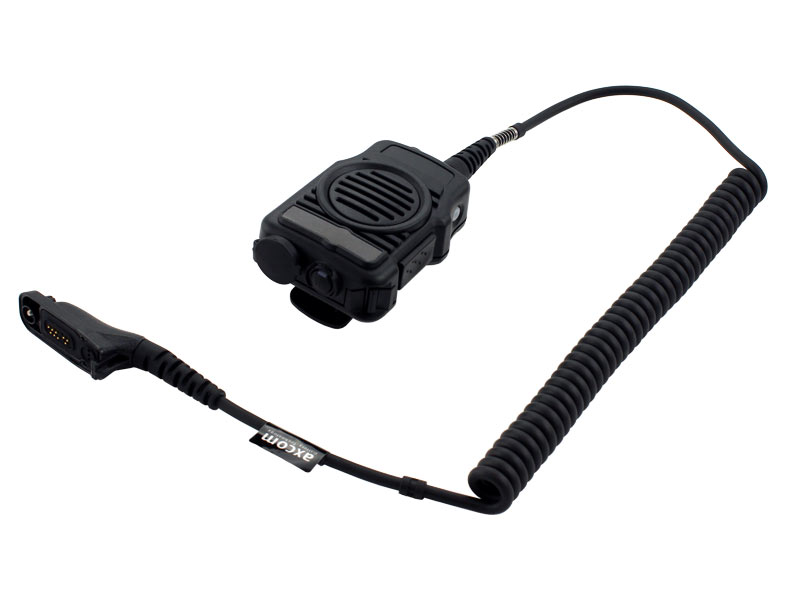

Optimal design: The speaker microphone consists of a robust housing and is intuitive to use thanks to its simple design. It has 2 PTT buttons and several connections, which are sealed with protective covers (IP68). Durable reflective strips provide excellent visibility at night and are easy to clean. The surface film is smooth, dirt-repellent and weather-resistant. The cable is made of an acid, temperature and cold-resistant, environmentally friendly rubber material and has a bend protection made of elastic hard rubber. A stainless steel spring reinforces the cable protection.

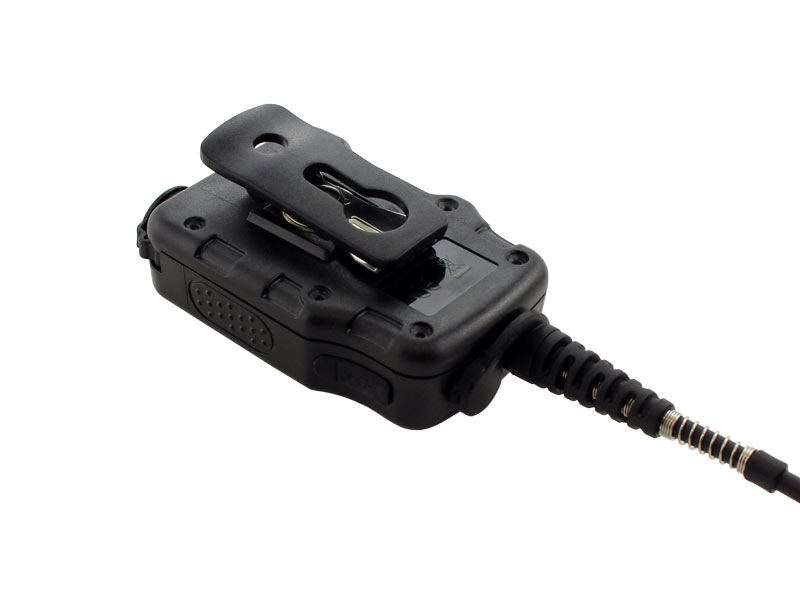

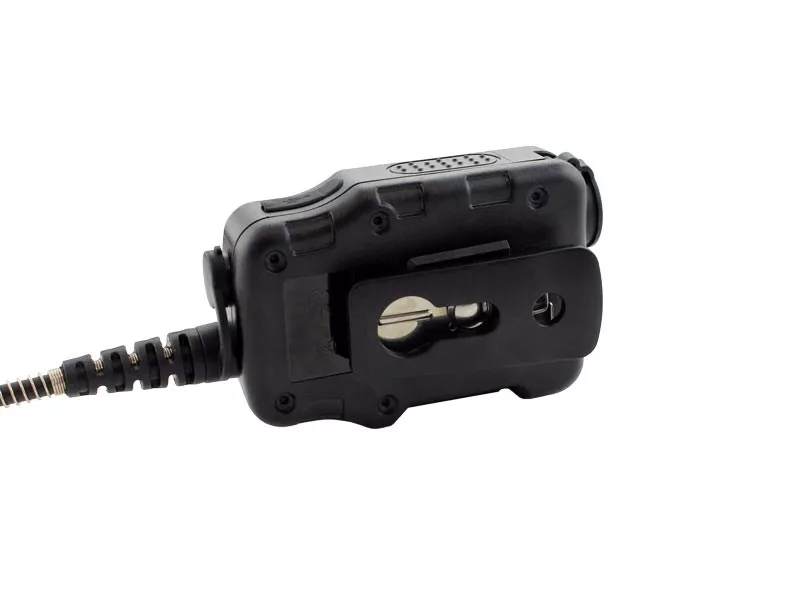

Strong fastening clip: The speaker microphonel is attached to the equipment with a fastening clip. The clip is made of stainless steel with a plastic cover. A high-torque spring reinforces the overall clamping force of the clamp. The base is also made of stainless steel and can be rotated through 360° (8 notches).

Your advantages at a glance:

• Parallel connection to radio (Nexus plug) and cell phone (Bluetooth)
• High sound quality thanks to condenser microphone and noise suppression
• External audio socket for Nexus-compatible headsets/ 3.5 mm socket for earphones
• LED indicators and signal tones support the function
• Easy to operate, even with gloves
• High-quality components for a long service life
• IP68 dust and water protection
• Particularly good price-performance ratio
• 12-month warranty

Product information:

Compatible with: Motorola R7, MXP600
Dimensions: 68x100mm
Mounting clip dimensions: 69x32mm
Cable length: 54cm
Weight: 290g
Cable cross-section: Ø 5.5mm
Cable material: acid-, temperature- and cold-resistant, environmentally friendly rubber material
Bluetooth version: V 5.0
Protection class: IP68

Microphone:

Dimensions: 6x5mm
Sensitivity: -40 ± 3dB
Orientation: Omnidirectional

Loudspeaker:

Dimensions: Ø 45mm
Impedance: 8 Ohm ± 15%

Battery / USB charging port:

Battery capacity: 850mAh
Charging voltage: 5V
Charging current: 500mA
Charging time: 3-4h
Continuous operating time: 28h
Standby time: 115h
