Speaker microphone for Kenwood TK290, NX200, NX300 FUG11b (Savox assignment)

The XSMP5000K1-SON-Y Axcom speaker microphone is compatible with Kenwood TK290, NX200, NX300 radios.

Compared to dynamic microphones, speaker microphones impress with their high sound quality. Built-in condenser microphones reduce background noise and powerful built-in speakers ensure clear communication.

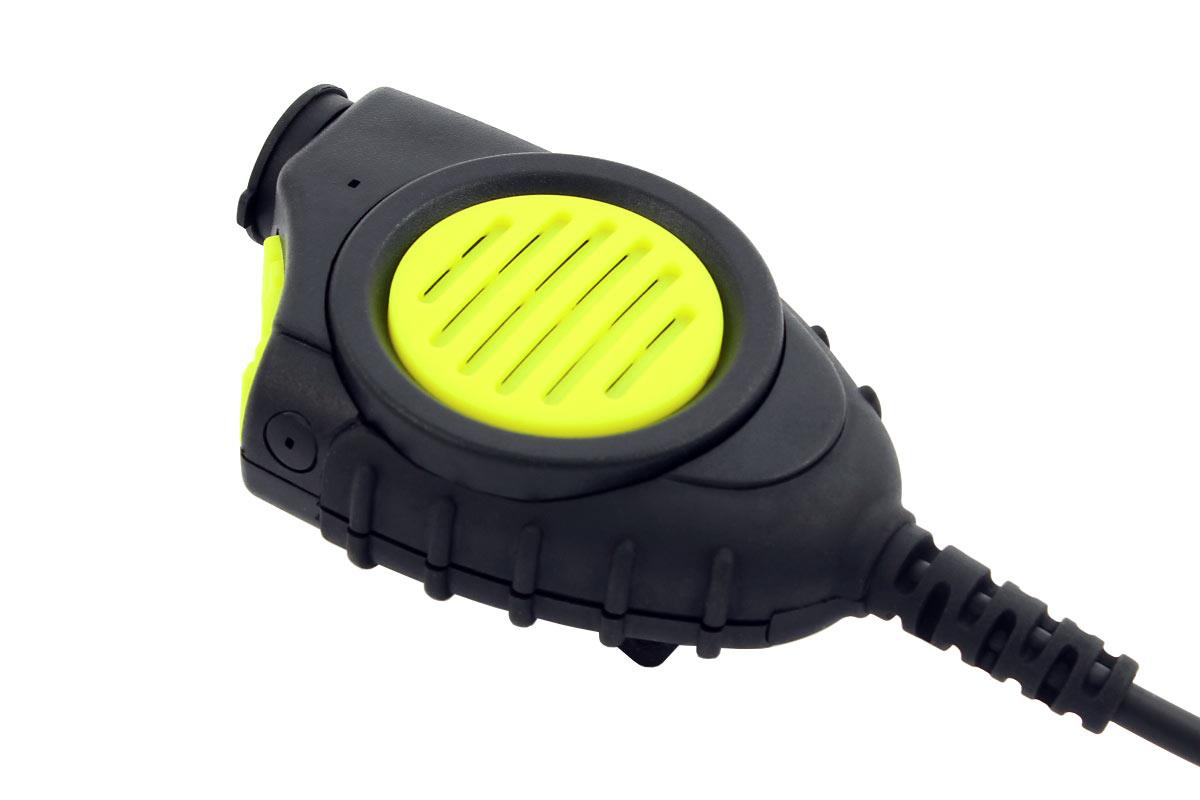

The Axcom speaker microphones consist of a robust, partially rubberized housing and are easy to operate thanks to their intuitive design. A large transmit button on the top makes it easy to operate even when wearing gloves and its eye-catching yellow color makes it easy to see even in the dark or in poor visibility conditions. A 360° rotatable fastening clip with 8 notches allows you to attach the control unit perfectly. A high-quality PU cable and anti-kink sleeves ensure long-term use. You also have the option of connecting accessories with a 7.1 mm Nexus plug with Savox pin assignment.

With its features and IP56 protection class, the speaker microphone is ideally equipped for use in wet and harsh environments.

Technical information:

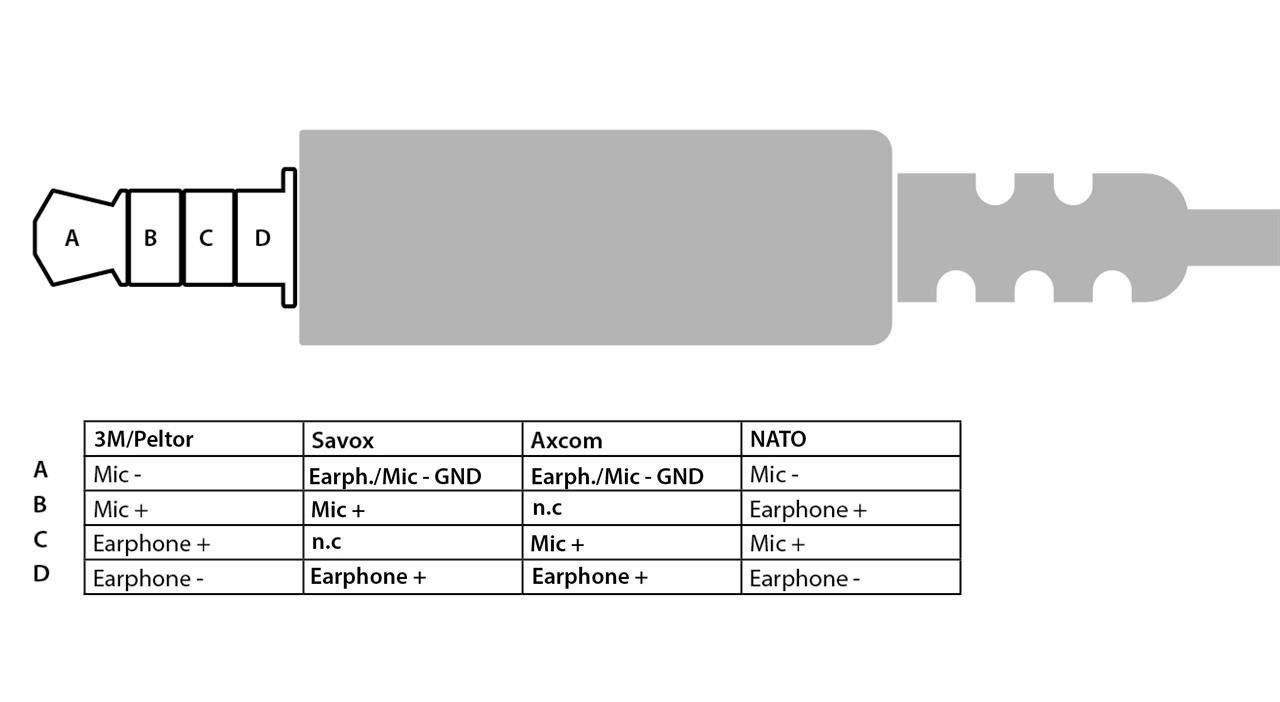

Nexus Savox pinout (7.1mm connector)

Dimensions: 101.0 x 66.7mm
Mounting clip dimensions: 54.2 x 22.2mm
Microphone dimensions: Ø6.0 x 5.0mm
Weight: 200g
Cable length: 500mm
Cable cross-section: Ø5.5mm
Cable material: PU
Compatible with: Kenwood TK290/ NX200/300 Fug11b

Electronic data:

Sensitivity: -45dB +- 3dB
Loudspeaker dimensions: Ø40mm
Impedance: 8Ohm +- 15%
Maximum power: 1.0W
